Silicone Self-Fusing Busbar Tape
Product: Silicone Self-Fusing Busbar Tape – Red
✅ Applications & Usages
| Application Area | Usage / Purpose |
|---|---|
| Busbar Insulation | Provides high-temperature electrical insulation for LV & HV busbars. |
| Moisture Protection | Seals and protects against water, humidity, and dust ingress. |
| Overlapping Wrapping | Forms a continuous, void-free insulation layer without adhesive. |
| Heat Resistance | Withstands high operating temperatures (up to 200–250°C, short-term higher). |
| Corona & Tracking Shield | Prevents electrical tracking, corona discharge, and flashovers in switchgear. |
| Mechanical Protection | Adds abrasion resistance and cushioning to busbars and joints. |
| Emergency Repairs | Temporary or permanent insulation and sealing for electrical components. |
📖 Product Description
Silicone Self-Fusing Busbar Tape (Red) is a high-performance, non-adhesive, self-amalgamating silicone rubber tape designed for insulating and protecting busbars in electrical systems.
When stretched and overlapped, it fuses into a solid, void-free, waterproof insulation layer, ensuring long-term reliability under demanding conditions.
It is resistant to heat, UV, corona discharge, moisture, ozone, and most chemicals, making it ideal for indoor and outdoor electrical installations. The red color provides clear identification and safety marking for busbars.
✅ Key Features:
-
Self-fusing (no adhesive, bonds to itself)
-
High dielectric strength for electrical safety
-

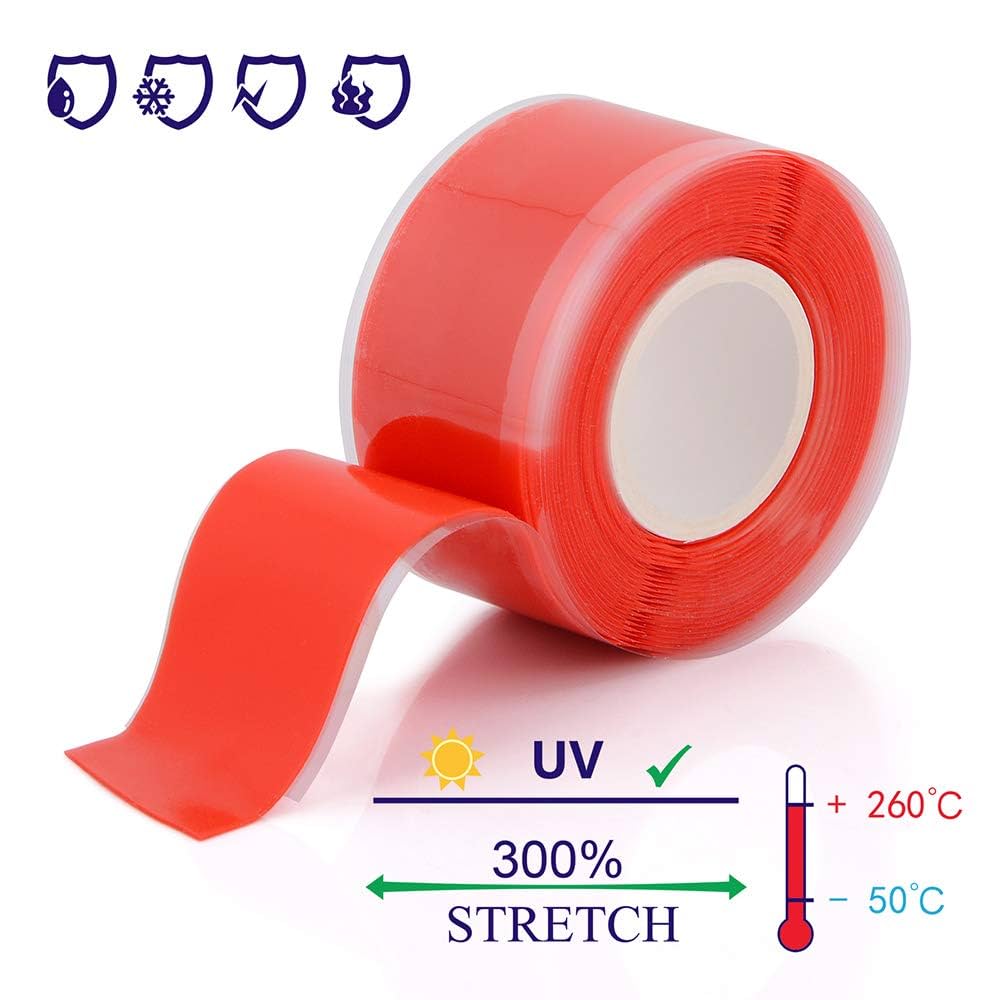

Continuous operating temperature: –50°C to +250°C
-
Weatherproof, ozone & UV resistant
-
Easy to apply and remove without residue
-
Available in multiple colors for phase identification
